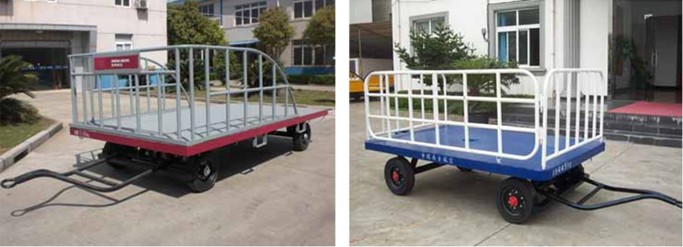

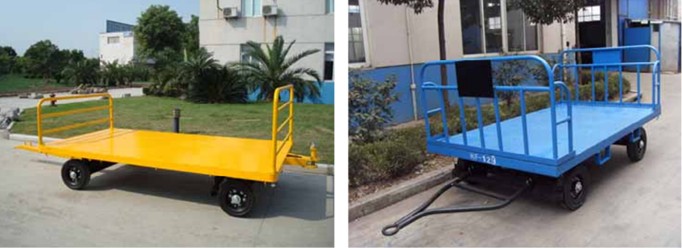

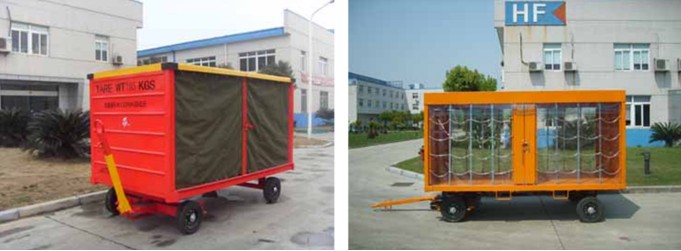

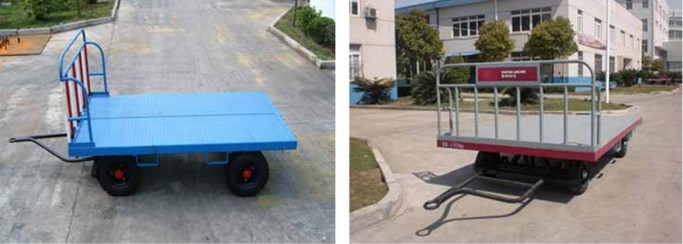

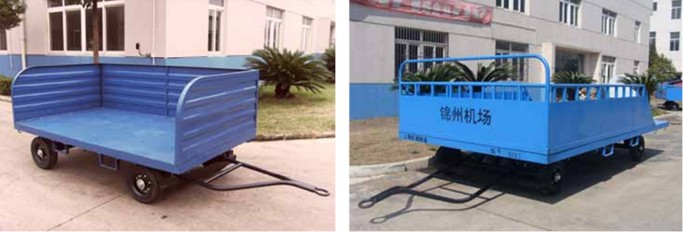

1. The cart can load baggage, wraps and bulk cargo.
2. The rear part is loaded with spring type suspension hook which prevents the cart from getting unhooked.
3. The towbar has multi-cart connection and braking dual functions.
4. The cart with special turnplate in forward shaft turns well in driving.
5. The tire uses the ultra-wearable solid core tire, the service life is long.
6. According to the customer’s request, the faceplate can adopt different materials(stainless steelplate or checked steelplate). The exterior dimension can change according to customer’s request.
Product Technical Parameters （general condition）
Overall dimension: 3695x1500x1250mm
Flat dimension: 2500x1500mm
Height of working surface: 560mm
Tire specification: 16x5-9
Loading rate: 2,000kg
Speed: 30km/h
Material of Main Components
Frame: standard channel steel (8#)
Rail: steel tube (1.5mm)
Towbar: seamless steel tube (￠42x4mm)
Faceplate: checked steel plate (1.5mm)
