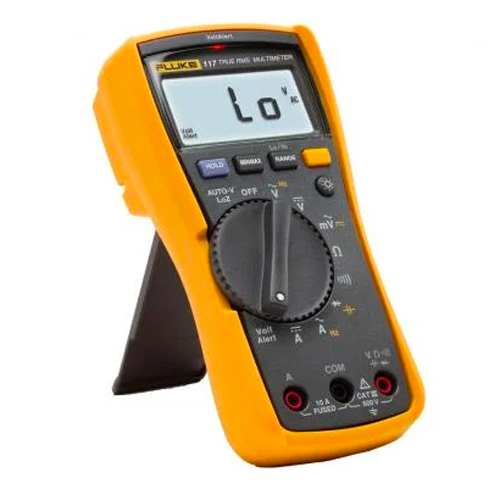

The Fluke 117 Electricians Multimeter includes integrated non-contact voltage detection and Auto Volts and LoZ functions to help get the job done faster and prevent false readings caused by ghost voltage. It is a compact true-rms meter for demanding applications like commercial buildings, hospitals, and schools.
The Fluke 117 provides Min/Max/Average readings and measures frequency and capacitance. Plus, its easy-to-use interface can save you time and enable you to move from job to job more quickly.
规格：
Weight:
550 g
Dimensions:
167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
Maximum voltage:
600 V (between any terminal and earth ground)
Safety:
IEC 61010-1: Pollution Degree 2
IEC 61010-2-033: CAT III 600V
Fuse for A input:
11 A, 1000 V FAST Fuse (Fluke PN 803293)
Display:
Digital: 6,000 counts, updates 4 per second
Bar graph:
33 segments, updates 32 per second
Operating temperature:
-10°C to +50°C
Storage temperature:
-40°C to +60°C
Battery type:
9 volt Alkaline, IEC 6LR61
Battery life:
400 hours typical, without backlight
Warranty:
3 years
特征：
Includes:
4 mm silicone test lead set, holster, user manual
Features:
True-rms capabilities for accurate measurements on non-linear loads
Accurate, easy-to-use multimeter with integrated VoltAlert? technology for fast, go/no go non-contact voltage detection
Features AutoVolt automatic AC/DC voltage selection
Provides low input impedance to help prevent false readings due to ghost voltage
Presents a large white LED backlight for working in poorly lit areas
Measures 10 A (20 A overload for 30-seconds)
Measures resistance, continuity, frequency, and capacitance
Provides Min/Max/Average to record signal fluctuations
Comes with an holster with probe holders for easy storage
Fits into optional ToolPak? magnetic hanger for hands-free operation
CAT III 600 V safety rated
A large white LED backlight to improve measurement visibility in poorly lit areas
