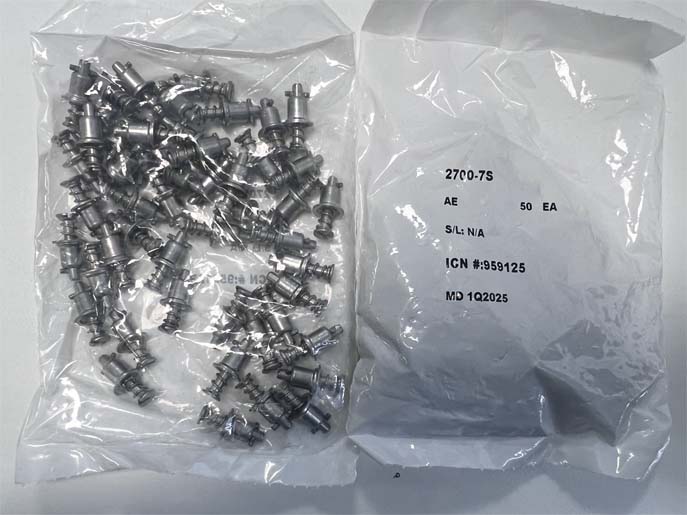

The Camloc 2700-7S Stud is a slotted recess, flush head fastener stud from the Calmoc 2700 series. Has a length .790" of and a total grip thickness of .210"-.239". Constructed from stainless steel. These light-duty Camloc studs are rated for 200 pounds working strength (ultimate tensile strength 300 pounds). The slot head allows use with standard flat-blade screwdrivers (no special tools needed).
Features
Product Type: Stud
Fastener Series: 2700
Stud Size: 7
Stud Type: Countersunk Flush
Head Type: Slotted
Head Shape: Flat
Body Material: Stainless Steel
Total Stud Length: .790in [20.06mm]
Total Material Thickness
w/ fixed receptacle: .210-.239in [5.33-6.07mm]
w/ adjustable receptacle: .190-.490in [4.82-12.44mm]
Working Strength: 200 lbs
Ultimate Tensile Strength: 300 lbs
